GROHE SPA
Atrio Private Collection Batería de lavabo 1/2 Tamaño L

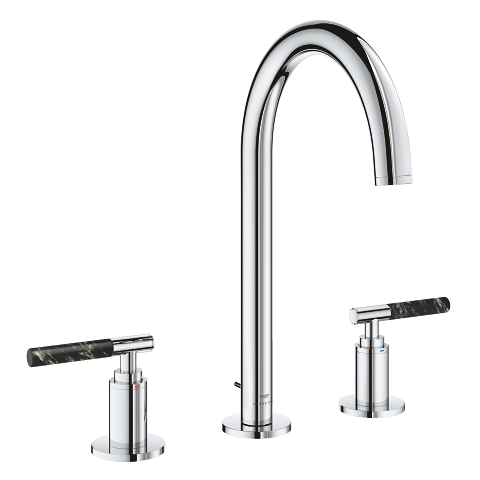

With this 3-hole basin mixer in L-size from the Atrio Private Collection series by GROHE in stylish chrome, you can give your bathroom a personalised touch by choosing the control element that suits your aesthetic preferences!
The GROHE Atrio Private Collection impresses with the perfect balance of subtle grace, advanced technology and the highest quality standards, manufactured in Germany. The delicate design with clear lines and rounded shapes also offers a variety of options for individual design with different colours and materials. The colour coating in chic chrome is hard-wearing and easy to maintain. The GROHE Atrio Private Collection 3-hole basin mixer in L-size not only impresses with its aesthetic design, but also with its high-quality ceramic components for smooth and stepless operation. The water consumption is limited to 5 l/min (at 3 bar) in an environmentally friendly way, without compromising on performance. With an installation height of 291mm, this model offers you plenty of space between the spout and washbasin. This model offers you maximum flexibility thanks to the swivelling spout (150° or 360°), which can also be fixed if required. Thanks to the slim rod at the back of the tap, you can easily open and close the drain without getting your hands wet. Opt for the mixer tap with chrome lever handles - you can choose from the variants 48458000 (White Attica Caesarstone), 48459000 (Vanilla Noir Caesarstone) and 48646000 (knurled structure). GROHE Atrio Private Collection – for a personal touch in the bathroom.
- Montura cerámica 1/2", 90°
- GROHE Long-Life acabado duradero
- Tecnología GROHE Water Saving ahorro de agua con el máximo bienestar
- Caudal máximo a 3 bar: 5 l/min
- Caño giratorio de fundición Aireador tipo «Mousseur»
- Caño giratorio ajustable a 0° / 150° / 360°
- Vaciador automático
- Conexiones flexibles entre el cuerpo central y las llaves laterales
- para mandos tipo palanca (no incluidos)
- para combinar con palancas de distintos acabados 48458,48459, 48646
Datos CAD
Número de posición | Prod. Descripción | Número de pedido |
---|---|---|
*Accesorios especiales | ||
1 | Anillo decorativo | 1012960000 |
2 | Rosetón | 1012970000 |
3 | Carcasa | 1013000000 |
4 | Montura cerámica 1/2" | 45882000 |
4.1 | Junta tórica | 0392400M |
5 | Tuerca para rosca de 1/2 | 1290100M |
5.1 | Junta | 0138900M |
6 | Latiguillos flexibles | 45704000 |
7 | Fijación clip metálico | 6554100M |
8 | Vaciador automático 1 1/4" | 28910000 |
8.1 | Tapón del vaciador | 07182000 |
8.2 | Vastago de mando | 07052000 |
9 | Varilla del vaciador | 65196000 |
10 | Caño completo | 1012980000 |
10.1 | Mousseur completo | 48408000 |
10.2 | Clip fijación caño | 4826600M |
10.3 | Anillo protector | 0128500M |
11 | Montura cerámica 1/2" | 45883000 |
11.1 | Junta tórica | 0392400M |
12 | Vastago de mando | 07341000* |
13 | Tuerca 1/2" (Ø 14,5 mm.) | 1290200M* |
14 | Incrustaciones hechas de material de piedra Attica Caesarstone Blanca | 48460000* |
15 | Incrustaciones hechas de material de piedra Vanilla Noir Caesarstone Negra | 48461000* |
16 | Palancas moleteadas | 48646000* |
17 | Palanca | 1012990000* |
